該機是固定、密封、連續(xù)輸送機械設備，其工作原理為借助螺旋葉片的轉動來推進物料前進。本設備具有占地面積小、密封性強無粉塵、噪音小、結構簡單、工作平衡可靠等特點?？勺魉捷斔?，也可傾斜輸送。本設備被廣泛用于糧食、油料、飼料、釀酒等行業(yè)中，適用于各種粉料、粒料和小塊物料的輸送。

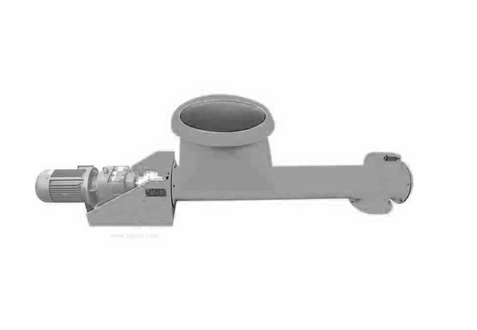

It is a kind of fixed, sealed and continuous conveying equipment whose operating principle is driving the materials forward by utilizing the rotation of screw blade. It is featured with small covering area, satisfactory sealing performance, free of dust, low noise, simple structure, stable and reliable operation, etc. Both horizontal conveying and inclined conveying are allowed. The equipment is widely used in grain, oil, feed, brewing and other industries, applicable for conveying of powdery, granular & small piece materials.
特點：
Characteristics:
1、主要用于面粉的水平及傾斜輸送的通用設備，常與振動卸料器配套使用
It is a kind of general equipment for horizontal & inclined conveying of flour, usually used together with vibrating unloader
2、無縫鋼管外殼，變螺距制作，輸送中物料不憋堵
Seamless steel pipe shell is adopted; it is produced by varying pitch, and there is no blocking phenomenon during material conveying
3、可通過PLC控制實現變頻調速喂料
Frequency conversion feeding can be achieved via PLC
4、進料端設置特制耐壓密封結構
The feed end is of tailor-made pressure-resistant sealing structure
5、密封性好少殘留
The sealing performance is satisfactory, and there is little residual
技術參數：
Technical parameters:
|
產量T/h Output T/h |
TWLL16 |
TWLL20 |
TWLL25 |
TWLL32 |
|
面粉 Flour |
10 |
12 |
25 |
35 |
|
顆粒料 Granular materials |
18 |
25 |
35 |
50 |
