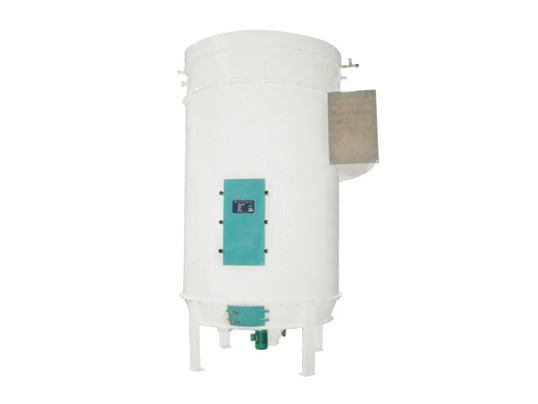

TBLM系列脈沖布筒濾塵器是我公司設計的一種 的除塵設備，該產品排灰結構合理、效果好、機體高度低，廣泛用于糧食、食品、化工、建材、醫藥、冶金、礦山等工業粉塵的清理、凈化回收。
TBLM series pulse cloth drum dust filter is a kind of advanced dust removing plant designed by our company, featured with reasonable dust discharge structure, satisfactory effect and low equipment body. It is widely used in grain, food, chemical engineering, construction materials, medicine, metallurgy, mining and other industries for dust cleaning, purification and recycling.
特點：
Characteristics:
1、氣包結構，耐壓性強，無漏氣情況存在；
It is of air pocket structure, with strong pressure resistance performance, free of air leakage phenomenon;
2、電磁閥控制吹噴清袋，無機械磨損和誤差；
Air pocket jetting is controlled by solenoid valve, free of mechanical wear and error;
3、掛鉤式布筒，方便不同更換；
Hook type cloth drum provides convenience for replacement;
4、可增設獨立進風箱體和錐體式出灰形式，有效提高清理效果
A separate inlet box and conical dust discharge structure can be added to improve the cleaning effect greatly
技術參數：
Technical parameters:
|
型號 Model |
濾袋長度 Filter bag length (mm) |
處理風量（m³/h） Air volume (m³/h) |
過濾面積（m³） Filtering area (m³) |
關風器功率 Power of airlock (kw) |
刮板電機功率 Power of scraper motor (kw) |
低壓泵型號 Low pressure pump model |
重量 Weight (kg) |
||
|
A |
B |
C |
|||||||
|
TBLM-26 |
1800 2000 2400 |
1030-5150 1140-5740 1370-6890 |
17.2 19.1 23.0 |
0.75 |
|
ZYMB40 |
710 749 794 |
573 663 620 |
672 705 730 |
|
TBLM-39 |
1800 2000 2400 |
1540-7700 1720-8610 2070-10390 |
25.7 28.7 34.6 |
1.1 |
1.5 |
ZYMB40 |
1030 1080 1120 |
823 860 915 |
781 1025 1072 |
|
TBLM-52 |
1800 2000 2400 |
2110-10550 2300-11450 2770-10400 |
35.2 38.2 46.1 |
1.1 |
1.5 |
ZYMB40 |
1230 1500 1700 |
998 1030 1124 |
1169 1218 1286 |
|
TBLM-78 |
1800 2000 2400 |
3100-15460 3238-17200 4146-20730 |
51.5 57.3 69.1 |
1.1 |
1.5 |
ZYMB60 |
1720 1800 2000 |
1387 1453 1552 |
1634 1721 1798 |
|
TBLM-104 |
1800 2000 2400 |
4116-20580 4590-22950 5526-27630 |
68.6 76.5 92.1 |
1.1 |
1.5 |
ZYMB80 |
2200 2500 3000 |
1640 1910 2220 |
2000 2320 2650 |
|
TBLM-130 |
1800 2000 2400 |
5292-26460 5934-29670 7056-35280 |
88.2 98.9 117.6 |
1.1 |
1.5 |
ZYMB120 |
2870 3000 3500 |
2132 2233 2384 |
2610 2735 2860 |
|
TBLM-168 |
1800 2000 2400 |
6836-34170 7596-37980 9114-45579 |
113.9 126.6 151.9 |
1.5×2 |
2.2 |
ZYMB140 |
3540 3721 3925 |
2652 2793 2994 |
3225 3377 3547 |
