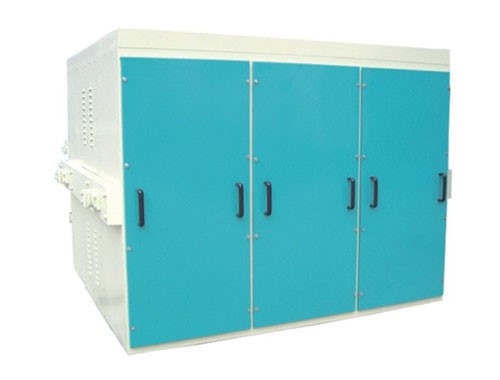

該機是制粉行業的主要設備之一，該機主要用于研磨后物料的篩理和分級，也可以作為檢查篩使用，還可用于醫藥、化工、塑料、制酒等行業粉末狀物料的處理和分級。
This type of equipment is one of the main equipment in flour milling industry, which is mainly used for sifting and grading of the ground materials. It can also be used as an inspection sieve, as well as for handling and grading of powder materials in medicine, chemical engineering, plastic, brewing and other industries.

特點：
Characteristics:

1、 與物料接觸的所有表面均有有效隔離，以確保搞衛生條件；
All surfaces contacting the materials are isolated effectively to ensure satisfactory sanitary conditions;

2、 物料通道易于接觸，便于清理；
It is easy and convenient to contact and clean the material channel;

3、 篩框易于安裝和拆卸；
It is easy to install and disassemble the screen frame;

4、 具有強大的篩理面積和佳空間利用能力；
Large sifting area and optimum space utilization ability can be provided;

5、 高方平篩采用優質玻璃鋼吊桿；
High-quality fiberglass suspender is adopted;

6、 篩體內部密封條完整，各連接處密封良好；
Sealing strips in screen body are complete, and all joints are well sealed;

技術參數：
Technical parameters:

型號 Model	篩格規格   Spec. of lattice (cm)	篩理面積（㎡）   Sifting area (㎡) 標準篩格   Standard lattice	篩格總高   Total height of lattice (mm) 不含篩底   Excluding sieve bottom	主軸轉速（r/min）   Main shaft speed (r/min)	回轉直徑   Turning diameter (mm)	電機功率   Motor power (kw)	設備質量   Equipment weight (kg)	外形尺寸（長×寬×高）mm   Boundary dimension (L × W × H) mm
FSFC4×18-24	634×634	20.4	1400	240-245	60-85	3	2500	1797×2400×2200
FSFC6×18		30.4	1400			3	3500	2563×2400×1650
FSFC6×24		40.4	1860			4	5300	2563×2400×2200
FSFC6×34		47.1	2030			5.5	6200	2563×2580×2780
